Synthesis and biological evaluation of 2-(4-methylsulfonyl phenyl) indole derivatives: multi-target compounds with dual antimicrobial and anti-inflammatory activities

Abstract

Three series of 2-(4-methylsulfonylphenyl) indole derivatives have been designed and synthesized. The synthesized compounds were assessed for their antimicrobial, COX inhibitory and anti-inflammatory activities. Compound 7g was identified to be the most potent antibacterial candidate against strains of MRSA, E. coli, K. pneumoniae, P. aeruginosa, and A. baumannii, respectively, with safe therapeutic dose. Compounds 7a–k, 8a–c, and 9a–c showed good anti-inflammatory activity with excessive selectivity towards COX-2 in comparison with reference drugs indomethacin and celecoxib. Compounds 9a–c were found to release moderate amounts of NO to decrease the side effects associated with selective COX-2 inhibitors. A molecular modeling study for compounds 7b, 7h, and 7i into COX-2 active site was correlated with the results of in vitro COX-2 inhibition assays.

Introduction

Bacterial resistance reached a dangerous level due to the misuse of antibiotics thus searching for new antimicrobial agents is a significant issue [1]. Furthermore, the administration of multiple drugs to relieve inflammation associated with a bacterial infection may have some secondary health problems and may increase adverse effects [2]. Unfortunately, few drugs possessed these two activities in a single compound. Therefore, there are continuous trails to develop a monotherapy against inflammation due to microbial infection (dual antimicrobial/anti-inflammatory agent) with minimal adverse effects and high safety margin [3].

The nonsteroidal anti-inflammatory drugs (NSAIDs) are used as the primary remedy for pain, fever, and inflammation through inhibition of cyclooxygenase (COX) enzymes [4,5,6]. Selective COX-2 inhibitor drugs like valdecoxib I, celecoxib II and rofecoxib III relieve inflammation without any gastric side effects [7] (Fig. 1). Despite less gastric irritation of selective COX-2 inhibitors, they showed a few cardiovascular issues consisting of myocardial infarction and high blood pressure [8, 9], leading to the withdrawal of both rofecoxib and valdecoxib from the market [10]. The cause of cardiovascular issues may be due to inhibition of vasodilatory prostacyclin (PGI2) and an increase in the level of platelet activator thromboxane A2 (TxA2) [11]. Nitric oxide (NO) showed vasodilator activity and inhibition of platelet aggregation [12]. Accordingly, attachment of NO donor moiety to selective COX-2 inhibitors may be beneficial to overcome the cardiovascular side effects [13, 14].

Fig. 1
figure1

Chemical structures of selective cyclooxygenase-2 (COX-2) inhibitor drugs (I, II, III)

A lot of biologically aryl hydrazone derivatives with antimicrobial activity are found in many literatures [15,16,17] which include nitrofurantoin IV [18, 19]. Additionally, indole-based indomethacin V is a potent NSAID used for the treatment of inflammatory diseases such as rheumatoid arthritis and osteoarthritis [20]. Still, due to its high selectivity for COX-1 inhibition and its acidic nature, it had an apparent ulcerogenic effect [21].

Herein, we aimed to make molecular hybridization of the indole part of indomethacin with p-methylsulfonyl phenyl part of selective COX-2 inhibitors to match the overall structure of coxibs [presence of a diaryl heterocycle bearing one sulfonamide (SO2NH2) or methylsulfonyl (SO2CH3) group] [22]. Keep in mind the presence of arylhydrazone derivatives at position 3 in indole with the hope to get compounds with dual antimicrobial/anti-inflammatory activity (Fig. 2).

Fig. 2
figure2

Hybridization of chemical structures of indomethacin V, celecoxib II, nitrofurantoin IV to design indole derivatives 7a–k, 8a–c, and 9a–c

Results and discussion

Chemistry

The compounds were synthesized through a series of reactions illustrated in Scheme 1, 2. The reaction of p-methylsulfonyl acetophenone (3) with 4-un/substituted phenylhydrazine HCl under Fischer indole synthesis conditions yielded indole derivatives (5a–c) that are converted to indole-3-carbaldehyde derivatives (6a–c) by Vilsmeir Haack’s formylation reaction using POCl3 and DMF (Scheme 1).

Scheme 1
scheme1

Reagents and conditions: a acetic anhydride, AlCl3; b Oxone, H2O, reflux, 18 h; c 4-substituted phenylhydrazine HCl, ethanol, reflux, 4 h; d PPA, water bath, 4 h; e POCl3, DMF, RT, overnight

Scheme 2
scheme2

Reagents and conditions: a 4-chloro-o-phenylenediamine, Na2S2O5, DMF, reflux, 6 h; b 4-substituted phenylhydrazine HCl, ethanol, reflux, 4–6 h.; c hydroxylamine, ethanol, few drops of pyridine, reflux, 4–6 h

IR spectra for compounds 6a–c showed significant bands at 3205–3320 cm−1 of indole NH, 1657–1670 cm−1 of C=O and 1150, 1300 cm−1 of SO2. 1H NMR spectra showed a signal at δ 10.00–10.04 ppm of an aldehydic proton (H-C=O), 3.17–3.21 ppm of SO2CH3 and 12.92–12.62 ppm of indole NH which is D2O exchangable.

Indole-3-carbaldehyde derivatives (6a–c) were reacted with 4-substituted phenylhydrazine HCl to give hydrazone derivatives (7a–k) in good yield. The structure elucidation of hydrazone derivatives (7a–k) was based on IR, 1H NMR, and 13C NMR spectral data. IR spectra showed bands at 1593-1597 cm−1 for C=N and disappearance of the carbonyl absorption band at 1657–1670 cm−1 which confirm hydrazone formation. 1H NMR spectra showed a signal at δ 8.24–8.36 ppm of hydrazone proton (H-C=N), 10.03–10.73 ppm of hydrazone NH which is D2O exchangeable, 12.00 ppm for NH indole which is D2O exchangeable and disappearance of an aldehydic proton at δ 10.00–10.04 ppm which confirm hydrazone formation. 13C NMR spectra showed a peak at 143–149 ppm of hydrazone carbon (C=N) which confirm hydrazone formation.

On the other hand, benzimidazole derivatives (8a–c) are synthesized from the reaction of Indole-3-carbaldehyde derivatives (6a–c) with 4-chloro-o-phenylenediamine in the presence of sodium metabisulphite. IR spectra showed bands at 3272–3382 cm−1 (indole NH, benzimidazole NH) and disappearance of the carbonyl absorption band at 1657–1670 cm−1. 1H NMR spectra showed the disappearance of an aldehydic proton at δ 10.00–10.04 ppm and the appearance of a signal at δ (12.37–12.45) ppm of benzimidazole NH (D2O exchangeable) in addition to a signal at δ 12.04–12.18 ppm of indole NH (D2O exchangeable).

Oxime derivatives (9a–c) resulted from the reflux of the reaction of Indole-3-carbaldehyde derivatives (6a–c) with hydroxylamine HCl. IR spectra lacked the carbonyl absorption band at 1657–1670 cm−1 and showed absorption bands at 3272–3382 cm−1 (NH, OH) and 1597 cm−1 (C=N). 1H NMR spectra showed a singlet signal at δ 8.32 ppm of azomethine proton H-C=N, 10.89 ppm of OH (D2O exchangeable) in besides to signal at δ 11.79–12.04 ppm of indole NH (D2O exchangeable) and disappearance of an aldehydic proton at δ 10.00–10.04 ppm which confirm oxime formation.

Biological evaluation

Antimicrobial screening

The antimicrobial study was performed by CO-ADD (The Community for Antimicrobial Drug Discovery), funded by the Wellcome Trust (UK) and The University of Queensland (Australia). Evaluation of all synthesized compounds for their antimicrobial activities was done against five pathogenic bacteria, methicillin-resistant Staphylococcus aureus (ATCC 43300) as Gram-positive bacteria, Escherichia coli (ATCC 25922), Klebsiella pneumonia (ATCC 700603), Acinetobacter baumannii (ATCC 19606) and Pseudomonas aeruginosa (ATCC 27853) as Gram-negative bacteria and antifungal activity against two pathogenic fungal strains Candida albicans (ATCC 90028) and Cryptococcus neoformans var. grubii (H99; ATCC 208821) (Table 1).

Table 1 The antibacterial and antifungal activities (growth inhibition %) for compounds 7a–k, 8a–c and 9a–c at 32 µg/mL concentration

Results revealed that hydrazone derivatives 7c, 7e, 7f, 7 h, and 7j have moderate antibacterial activity against Gram-negative A. baumannii with growth inhibition 43.29, 43.64, 66.69, 51.82 and 46.23%, respectively. While the hydrazone derivatives 7a, 7g, and 7i have high antibacterial activity against MRSA bacteria and E. coli, K. pneumoniae, P. aeruginosa, and A. baumannii with growth inhibition ranged from 85.76 to 97.76%.

Additionally, the oxime derivatives 9a showed moderate antibacterial activity against Gram-negative A. baumannii with growth inhibition 42.1%, while benzimidazole derivatives (8a–c) showed weak antibacterial activity.

On the other hand, all compounds have weak antifungal activity against C. albicans and C. neoformans var. grubii.

Minimal inhibitory concentrations (MIC µg/mL) measurements were performed for compounds with significant microbial growth inhibition (7a, 7g, and 7i) using ceftriaxone and amphotericin B as a reference drug for antibacterial and antifungal activity, respectively.

As shown in Table 2, compounds 7a, 7g and 7i have the best antibacterial activity comparable to that of ceftriaxone against MRSA, E. coli, K. pneumoniae, P. aeruginosa and A. baumannii, respectively.

Table 2 Minimum inhibitory concentrations (MIC µg/mL) of most active compounds 7a, 7g, 7i and reference drugs, ceftriaxone and amphotericin B

The safety margin for the active compounds to human cells was determined through cytotoxicity against human embryonic kidney cell line and hemolysis of human red blood cells. The tested compounds 7a, 7g, and 7i were tolerated and non-toxic to human cells as the cytotoxic and hemolytic dose was higher than the therapeutic dose (Table 2).

Compound 7a lacked general nonspecific toxicity, as the largest therapeutic dose (16 µg/mL against A. baumannii) was lower than the cytotoxic and hemolytic concentration (> 32, > 32 µg/mL respectively). Also, compound 7g showed safe therapeutic concentration against all tested microbes except for A. baumannii (4 µg/mL) which is near to cytotoxic concentration (4.2 µg/mL). Otherwise, the therapeutic concentration of compound 7i against all tested microbes was safe except for A. baumannii (4 µg/mL), which is higher than the cytotoxic concentration (2.987 µg/mL).

In vitro cyclooxygenase (COX) inhibition assay

The in vitro assay evaluated the ability of compounds 7a–k, 8a–c, and 9a–c to inhibit Ovine COX-1 and human recombinant COX-2. All tested compounds have weak COX-1 inhibition activity (IC50 = 9.14–13.2 µM) in comparison with indomethacin (IC50 = 0.039 µM). They also exerted potent COX-2 inhibitory activity (IC50 = 0.1–0.31 µM) with high COX-2 selectivity (SI = 132–31.29) in comparison with reference drugs, indomethacin and celecoxib.

Hydrazone derivatives 7a–k showed potent COX-2 inhibitory activity (IC50 = 0.10–0.31 µM) with high selectivity (SI = 132–31.29) more than other compounds. Likewise, benzimidazole 8a–c and oxime derivatives 9a–c showed good COX-2 inhibitory activity (IC50 = 0.13–0.35 µM) in comparison with reference drugs.

Generally, all tested compounds were more selective toward the COX-2 enzyme (SI = 31.29–132) than indomethacin (SI = 0.079) (Table 3) because the size of synthesized compounds was too large to fit into the small COX-1 active site in addition to the presence of diaryl structure bearing SO2CH3 or SO2NH2 group.

Table 3 In vitro COX-1 and COX-2 inhibition for compounds 7a–k, 8a–c, 9a–c and reference drugs

In vivo anti-inflammatory activity

The results listed in (Table 4) showed that compounds 7a–k, 8a–c, and 9a–c offered good anti-inflammatory activity (56.4–93.5% reduction of inflammation) after 6 h in comparison with celecoxib and indomethacin (94.7, 96.6% reduction of inflammation, respectively) after 6 h.

Table 4 Anti-inflammatory activities for compounds 7a–k, 8a–c, 9a–c and reference drug in carrageen-induced rat paw edema test

Hydrazone derivatives (7a–k) showed good anti-inflammatory activity (66.3–93.5% reduction of inflammation) after 6 h, Compounds that contained two SO2CH3 groups or one SO2CH3 and one SO2NH2 group (7b, 7c, 7d, 7e, 7h, and 7i) showed a reduction of inflammation by 93.5, 82.5, 78.6, 79.9, 92.7 and 90.1% after 6 h, respectively, more than other derivatives.

Also, benzimidazole and oxime derivatives (8a–c, 9a–c) showed good inhibition of inflammation ranged from 56.4 to 76.2% after 6 h.

Compounds 7b, 7c, 7h and 7i that showed the highest COX-2 inhibitory activity (IC50 = 0.1, 0.11, 0.11 and 0.1 respectively) with high selectivity (S.I. = 124.2, 103.7, 112.7 and 132 respectively) were found to have excellent anti-inflammatory activity (edema inhibition = 93.5, 82.5, 92.7 and 90.1%, respectively) after 6 h.

In vitro nitric oxide release

The NO-releasing properties of compounds 9a–c were assessed in phosphate buffer of pH 7.4 with Griess reagent [23]. As shown in Table 5, compounds 9a–c were found to release moderate amounts of NO compared to the sodium nitrite standard solution, which may explain that the desired action of NO is mediated systemically in the biological system [24]. Therefore, the insertion of nitric oxide releasing group (oxime) can offer a method to decrease the cardiovascular side effects of selective COX-2 inhibitors.

Table 5 The amount of NO released from tested compounds 9a–c in phosphate buffer pH = 7.4 (% mol/mol)

Structure–activity relationship

Presence of arylhydrazone moiety 7a–k at position 3 of indole can possess antimicrobial activity against strains of Gram-positive MRSA bacteria and Gram-negative E. coli, K. pneumoniae, P. aeruginosa, and A. baumannii beside their COX-2 inhibitory activity.

Concerning the anti-inflammatory activity, replacement of methyl group in position 2 in indomethacin by p-methylsulfonyl phenyl moiety increased COX-2 selectivity through increasing the interaction with a hydrophobic residue of COX-2 active site [25]. In addition, the presence of two SO2CH3 groups or one SO2CH3 and one SO2NH2 group (7b, 7c, 7d, 7e, 7h, and 7i) has COX-2 selectivity more than other derivatives.

Replacement of acidic center (CH2COOH) moiety in position 3 in indomethacin by benzimidazole moiety 8a–c, as a rigid isostere of p-chlorobenzoyl moiety of indomethacin, enhances the anti-inflammatory activity and COX-2 selectivity.

Molecular modeling

To understand the nature of the interaction of the most active synthesized compounds and COX-2 active site, a molecular docking study was performed using crystal structure data for COX-2 (PDB: ID 3LN1) active site obtained from protein data bank [26]. Molecular modeling of compounds 7h, 7i, 7b, and co-crystallized ligand, celecoxib was performed using MOE 2018.0101 modeling software.

The docking results of compounds 7h, 7i, 7b, and celecoxib were presented in (Table 6). Hydrazone derivatives 7b, 7h, and 7i have been fully fitted within COX-2 active site with high affinity (− 17.19, − 16.71 and − 16.42 kcal/mol, respectively) in assessment with celecoxib (− 14.12 kcal/mol). Compounds 7b, 7h, and 7i contained one SO2CH3 and one SO2NH2 group or two SO2CH3 groups that formed hydrogen bonds with different amino acids (Leu338, Arg499, Ser339, Val335, Arg106, and His75). Besides, the indole ring of compound 7h and 7i offered hydrophobic interaction with Val509 (Fig. 3, 4). Thus, the molecular docking results ensure that compounds 7b, 7h and 7i bind to COX-2 active site with the same manner of celecoxib.

Table 6 Molecular docking data for compounds 7b, 7h, 7i and celecoxib in COX-2 active site (PDB ID: 3LN1)
Fig. 3
figure3

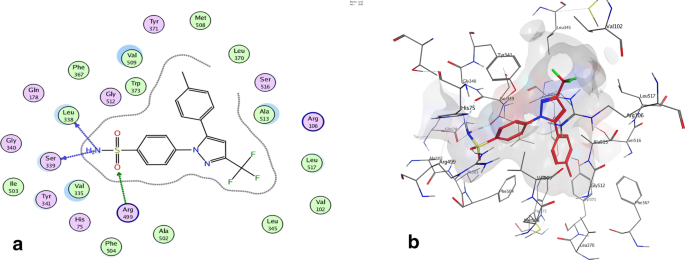

Binding of celecoxib inside COX-2 active site. a 2D interaction, the most important amino acids are shown together with their respective numbers. b The 3D proposed binding mode inside the active site of COX-2 resulted from docking

Fig. 4
figure4

Binding of compound 7b inside COX-2 active site. a 2D interaction, the most important amino acids are shown together with their respective numbers. b The 3D proposed binding mode inside the active site of COX-2 resulted from docking

Conclusion

Three series of 2-(4-methylsulfonylphenyl) indole derivatives 7a–k, 8a–c, and 9a–c were evaluated for their antimicrobial and anti-inflammatory activities.

The results showed that arylhydrazone derivatives 7a–k exhibited moderate to good levels of antimicrobial activity. In particular, compounds 7a, 7g, and 7i showed the highest antimicrobial activity against strains of MRSA bacteria and many species of Gram-negative with growth inhibition ranged from 85.76 to 97.76%.

Regarding anti-inflammatory activity, all synthesized compounds 7a–k, 8a–c and 9a–c showed potent anti-inflammatory (56.4–93.5% reduction of inflammation after 6 h.) and selective COX-2 inhibitory activity (IC50 = 0.1–0.31 µM, SI = 132–31.29) more than indomethacin. Besides, oxime derivatives 9a–c showed good selective COX-2 inhibitory activity with moderate in vitro nitric oxide release, which can offer valuable drug design to decrease the cardiovascular problems.

The molecular modeling study ensured in vitro COX-2 inhibition assay results. Compounds 7b, 7h, and 7i fitted to a COX-2 enzyme similar to celecoxib.

These results suggested that the presence of methylsulfonyl moiety in the indole ring offered an increase in COX-2 selectivity more than the reference drug indomethacin. Also, hybridization of methylsulfonyl and arylhydrazone moiety with an indole ring, providing valuable design for the development of compounds with dual antimicrobial/anti-inflammatory activity. Many investigations are currently undergoing to determine the mechanism of action of these compounds.

Experimental

Chemistry

A Thomas-Hoover capillary apparatus used to determine melting points. Infrared (IR) spectra were recorded as films on KBr plates using the FT-IR spectrometer.

Thin-layer chromatography (Merck, Darmstadt, Germany) was used for monitoring the reaction mixture, purity, and homogeneity of the synthesized compounds. UV was used as the visualizing agent.

1H NMR and 13C NMR spectra were measured on a Bruker Avance III 400 MHz for 1H NMR and 100 MHz for 13C NMR (Bruker AG, Switzerland) with BBFO Smart Probe and Bruker 400 AEON Nitrogen-Free Magnet, Faculty of Pharmacy, Beni-Suef University, Egypt in DMSO-d6 with TMS as the internal standard, where J (coupling constant) values are estimated in Hertz (Hz) and chemical shifts were recorded in ppm on δ scale.

Microanalyses for C, H, and N were carried out on Perkin-Elmer 2400 analyzer (Perkin-Elmer, Norwalk, CT, USA) at the Microanalytical unit of Al Azhar University, Egypt and all compounds were within ± 0.4% of the theoretical values.

p-Methylthioacetophenone (2) and p-methylsulfonyl acetophenone (3) and 5-Un/substituted-2-(4-(methylsulfonyl) phenyl)-1H-indole (5a-c) were prepared according to a previous procedure [13]. The compounds were confirmed by matching their physical properties with the reported ones.

General procedure for synthesis of 5-substituted-2-(4-(methylsulfonyl)phenyl)-1H-indole-3-carbaldehyde 6a-c

A mixture of phosphorous oxychloride POCl3 (1.53 g, 10 mmol) and DMF (0.73 g, 10 mmol) was stirred for 30 min at room temperature, the solution of respective indole (1 mmol) in DMF (5 mL) was added slowly to the mixture which allowed to stir overnight. The reaction mixture was poured into ice-cold water and neutralized with 40% NaOH. The separated solid was filtered, dried and recrystallized from ethyl alcohol (yield: 70–80%).

2-(4-(Methylsulfonyl)phenyl)-1H-indole-3-carbaldehyde (6a)

Yellow solid; Yield 70%; mp 232–235 ℃; IR (KBr, cm−1) 3205 (NH), 3065–3042 (CH aromatic), 2929–2871 (CH aliphatic), 1657 (C=O), 1305, 1150 (SO2); 1H NMR (DMSO-d6) δ (ppm): 3.21 (s, 3H, SO2CH3), 7.27–7.36 (m, 2H, indole H-5, H-6), 7.57 (d, 1H, J = 8 Hz, indole H-7), 8.08 (d, 2H, J = 8.4 Hz, phenyl H-2, H-6), 8.15 (d, 2H, J = 8.4 Hz, phenyl H-3, H-5), 8.26 (d, 1H, J = 7.6 Hz, indole H-4), 10.04 (s, 1H, aldehydic H), 12.64 (s, 1H, indole NH, D2O exchangeable). Anal. Calced for C16H13NO3S: C, 64.20; H, 4.38; N, 4.68. Found: C, 64.48; H, 4.40; N, 4.84.

5-Methyl-2-(4-(methylsulfonyl)phenyl)-1H-indole-3-carbaldehyde (6b)

Brown solid; Yield 80%; mp 244–246 ℃; IR (KBr, cm−1) 3279 (NH), 3059–3029 (CH aromatic), 2927–2856 (CH aliphatic), 1670 (C=O), 1301, 1148 (SO2); 1H NMR (DMSO-d6) δ (ppm): 2.45 (s, 3H, CH3), 3.17 (s, 3H, SO2CH3), 7.17 (d, 1H, J = 8 Hz, indole H-6), 7.46 (d, 1H, J = 8 Hz, indole H-7), 8.06–8.14 (m, 5H, indole H-4, phenyl H-2, H-3, H-5, H-6), 10.00 (s, 1H, aldehydic H), 12.62 (s, 1H, indole NH, D2O exchangeable). Anal. Calced for C17H15NO3S: C, 65.16; H, 4.82; N, 4.47. Found: C, 65.27; H, 4.68; N, 4.52.

5-Fluoro-2-(4-(methylsulfonyl)phenyl)-1H-indole-3-carbaldehyde (6c)

Yellow solid; Yield 72%; mp 195–197 ℃; IR (KBr, cm−1) 3320 (NH), 3064–3027 (CH aromatic), 2928–2853 (CH aliphatic), 1661 (C=O), 1302, 1146 (SO2); 1H NMR (DMSO-d6) δ (ppm): 3.18 (s, 3H, SO2CH3), 7.2 (d, 1H, J = 8 Hz, indole H-6), 7.58 (s, 1H, indole H-4), 7.91 (d, 1H, J = 9.6 Hz, indole H-7), 8.09 (d, 2H, J = 8.4 Hz, phenyl H-2, H-6), 8.14 (d, 2H, J = 8.4 Hz, phenyl H-3, H-5), 10.00 (s, 1H, aldehydic H), 12.92 (s, 1H, indole NH, D2O exchangeable). Anal. Calced for C16H12FNO3S: C, 60.56; H, 3.81; N, 4.41. Found: C, 60.73; H, 3.72; N, 4.62.

General procedure for synthesis of 5-substituted-3-((2-(4-substituted- phenyl)hydrazono) methyl)-2-(4-(methylsulfonyl)phenyl)-1H-indole 7a-k

A mixture of an ethanolic solution of respective indole-3-carbaldehyde derivative (6a–c) (1 mmol) and 4-substituted phenylhydrazine HCl (1 mmol) was heated under reflux for 4–6 h in the presence of a few drops of glacial acetic acid. After cooling, the reaction mixture was poured into ice-cold water and the separated solid was filtered, dried and recrystallized from methanol (yield: 73–92%).

3-((2-(4-Fluorophenyl)hydrazono)methyl)-2-(4-(methylsulfonyl)phenyl)-1H-indole (7a)

Brown solid; Yield 73%; mp 204–206 ℃; IR (KBr, cm−1) 3282–3317 (indole NH, hydrazone NH), 3063 (CH aromatic), 2927–2843 (CH aliphatic), 1597 (C=N), 1302, 1148 (SO2); 1H NMR (DMSO-d6) δ (ppm): 3.26 (s, 3H, SO2CH3), 7.04–7.18 (m, 4H, phenyl hydrazone H-3, H-5, indole H-5, H-6), 7.44 (d, 1H, J = 8 Hz, indole H-4), 7.59 (d, 2H, J = 8.4 Hz, phenyl hydrazone H-2, H-6), 7.99 (d, 2H, J = 8.4 Hz, phenyl H-2, H-6), 8.12 (d, 2H, J = 8.4 Hz, phenyl H-3, H-5), 8.27 (s, 1H, CH), 8.4 (d, 1H, J = 8 Hz, indole H-7), 10.01 (s, 1H, hydrazone NH, D2O exchangeable), 11.79 (s, 1H, indole NH, D2O exchangeable); 13C NMR (DMSO-d6) δ (ppm): 43.0 (SO2CH3), 110.4, 111.9, 112.7, 115.2, 120.3, 125.6, 126.2, 128.0, 129.7, 132.1, 135.7, 136.4, 137.3, 140.2, 143.6 (CH=N), 154.7, 157.1. Anal. Calced for C22H18FN3O2S: C, 64.85; H, 4.45; N, 10.31. Found: C, 65.08; H, 4.33; N, 9.95.

2-(4-(Methylsulfonyl)phenyl)-3-((2-(4-(methylsulfonyl)phenyl)hydrazono)methyl)-1H-indole (7b)

Yellow solid; Yield 85%; mp 228–230 ℃; IR (KBr, cm−1) 3262–3309 (indole NH, hydrazone NH), 3017 (CH aromatic), 2934–2863 (CH aliphatic), 1593 (C=N), 1299, 1150 (SO2); 1H NMR (DMSO-d6) δ (ppm): 3.11 (s, 3H, SO2CH3), 3.33 (s, 3H, SO2CH3), 7.17 (d, 2H, J = 8 Hz, phenyl hydrazone H-3, H-5), 7.24–7.33 (m, 2H, indole H-5, H-6), 7.51 (d, 1H, J = 8 Hz, indole H-4), 7.75 (d, 2H, J = 8 Hz, phenyl hydrazone H-2, H-6), 7.95 (d, 2H, J = 8 Hz, phenyl H-2, H-6), 8.13 (d, 2H, J = 8 Hz, phenyl H-3, H-5), 8.3 (s, 1H, CH), 8.4 (d, 1H, J = 8 Hz, indole H-7), 10.72 (s, 1H, hydrazone NH, D2O exchangeable), 11.98 (s, 1H, indole NH, D2O exchangeable); 13C NMR (DMSO-d6) δ (ppm): 43.9 (SO2CH3), 44.8 (SO2CH3), 110.5, 111.2, 112.2, 121.5, 122.7, 124.1, 125.7, 127.9, 128.7, 129.5, 130.2, 136.8, 137.3, 137.6, 137.8, 140.6, 149.8 (CH = N). Anal. Calced for C23H21N3O4S2: C, 59.08; H, 4.53; N, 8.99. Found: C, 59.27; H, 4.68; N, 9.12.

4-(2-((2-(4-(Methylsulfonyl)phenyl)-1H-indol-3-yl)methylene)hydrazinyl)benzene sulfonamide (7c)

Yellow solid; Yield 83%; mp 203–204 ℃; IR (KBr, cm−1) 3298–3325 (NH2, indole NH, hydrazone NH), 3014 (CH aromatic), 2924–2853 (CH aliphatic), 1593 (C=N), 1276, 1089 (SO2); 1H NMR (DMSO-d6) δ (ppm): 3.11 (s, 3H, SO2CH3), 7.17 (d, 2H, J = 8 Hz, phenyl hydrazone H-3, H-5), 7.24–7.33 (m, 2H, indole H-5, H-6), 7.5 (d, 1H, J = 8 Hz, indole H-4), 7.75 (d, 2H, J = 8 Hz, phenyl hydrazone H-2, H-6), 7.95 (d, 2H, J = 8 Hz, phenyl H-2, H-6), 8.13 (d, 2H, J = 8 Hz, phenyl H-3, H-5), 8.36 (s, 1H, CH), 8.39 (d, 1H, J = 8 Hz, indole H-7), 10.71 (s, 1H, hydrazone NH, D2O exchangeable), 11.97 (s, 1H, indole NH, D2O exchangeable), NH2 not distinguished; 13C NMR (DMSO-d6) δ (ppm): 43.9 (SO2CH3), 110.5, 111.2, 112.2, 121.5, 122.7, 124.1, 125.7, 127.9, 128.7, 129.5, 130.2, 136.8, 137.3, 137.6, 137.8, 140.6, 149.8 (CH=N). Anal. Calced for C22H20N4O4S2: C, 56.39; H, 4.30; N, 11.96. Found: C, 56.45; H, 4.17; N, 12.28.

5-Methyl-2-(4-(methylsulfonyl)phenyl)-3-((2-(4-(methylsulfonyl)phenyl) hydraz-ono) methyl)-1H-indole (7d)

Brown solid; Yield 85%; mp 262–264 ℃; IR (KBr, cm−1) 3319–3340 (indole NH, hydrazone NH), 3023 (CH aromatic), 2932–2856 (CH aliphatic), 1595 (C=N), 1300, 1140 (SO2); 1H NMR (DMSO-d6) δ (ppm): 2.55 (s, 3H, CH3), 3.11 (s, 3H, SO2CH3), 3.31 (s, 3H, SO2CH3), 7.12–7.18 (m, 3H, indole H-6, phenyl hydrazone H-3, H-5), 7.4 (d, 1H, J = 8.4 Hz, indole H-7), 7.76 (d, 2H, J = 8.4 Hz, phenyl hydrazone H-2, H-6), 7.92 (d, 2H, J = 8 Hz, phenyl H-2, H-6), 8.11 (d, 2H, J = 8 Hz, phenyl H-3, H-5), 8.35 (s, 1H, CH), 8.18 (s, 1H, indole H-4), 10.71 (s, 1H, hydrazone NH, D2O exchangeable), 11.88 (s, 1H, indole NH, D2O exchangeable); 13C NMR (DMSO-d6) δ (ppm): 22.0 (CH3), 44.0 (SO2CH3), 44.8 (SO2CH3), 110.1, 111.2, 111.9, 122.2, 125.6, 126.0, 126.8, 127.8, 128.7, 129.5, 129.8, 130.1, 135.7, 136.9, 137.8, 140.6, 149.8 (CH=N). Anal. Calced for C24H23N3O4S2: C, 59.86; H, 4.81; N, 8.73. Found: C, 59.67; H, 4.82; N, 8.97.

4-(2-((5-Methyl-2-(4-(methylsulfonyl)phenyl)-1H-indol-3-yl)methylene) hydrazine-yl) benzenesulfonamide (7e)

Yellow solid; Yield 87%; mp 186–188 ℃; IR (KBr, cm−1) 3300–3341 (NH2, indole NH, hydrazone NH), 3023 (CH aromatic), 2927–2854 (CH aliphatic), 1595 (C=N), 1300, 1130 (SO2); 1H NMR (DMSO-d6) δ (ppm): 3.1 (s, 3H, CH3), 3.33 (s, 3H, SO2CH3), 7.12–7.18 (m, 4H, phenyl hydrazone H-3, H-5, indole H-4, H-6), 7.39 (d, 1H, J = 8 Hz, indole H-7), 7.76 (d, 2H, J = 8 Hz, phenyl hydrazone H-2, H-6), 7.93 (d, 2H, J = 8 Hz, phenyl H-2, H-6), 8.12 (d, 2H, J = 8 Hz, phenyl H-3, H-5), 8.18 (s, 2H, NH2, D2O exchangeable), 8.35 (s, 1H, CH), 10.7 (s, 1H, hydrazone NH, D2O exchangeable), 11.88 (s, 1H, indole NH, D2O exchangeable); 13C NMR (DMSO-d6) δ (ppm): 22.0 (CH3), 43.9 (SO2CH3), 110.1, 111.2, 111.9, 122.3, 125.6, 125.9, 127.9, 128.6, 129.5, 129.8, 130.1, 135.7, 136.9, 137.8, 137.8, 140.5, 149.8 (CH=N). Anal. Calced for C23H22N4O4S2: C, 57.24; H, 4.60; N, 11.61. Found: C, 57.56; H, 4.53; N, 11.89.

3-((2-(4-Fluorophenyl)hydrazono)methyl)-5-methyl-2-(4-(methylsulfonyl)phenyl)-1H-indole (7f)

Yellow solid; Yield 80%; mp 159–161 ℃; IR (KBr, cm−1) 3250–3307 (indole NH, hydrazone NH), 3065 (CH aromatic), 2928–2859 (CH aliphatic), 1597 (C=N), 1300, 1146 (SO2); 1H NMR (DMSO-d6) δ (ppm): 2.49 (s, 3H, CH3), 3.4 (s, 3H, SO2CH3), 7.02 (d, 2H, J = 8.4 Hz, phenyl hydrazone H-3, H-5), 7.04–7.1 (m, 3H, phenyl hydrazone H-2, H-6, indole H-7), 7.37 (d, 1H, J = 8 Hz, indole H-6), 7.92 (d, 2H, J = 8 Hz, phenyl H-2, H-6), 8.1 (d, 2H, J = 8 Hz, phenyl H-3, H-5), 8.18 (s, 1H, indole H-4),8.25 (s, 1H, CH), 10.03 (s, 1H, hydrazone NH, D2O exchangeable), 11.75 (s, 1H, indole NH, D2O exchangeable); 13C NMR (DMSO-d6) δ (ppm): 22.6 (CH3), 43.6 (SO2CH3), 110.4, 111.5, 112.1, 116.2, 122.3, 125.4, 126.1, 127.8, 129.8, 134.6, 135.7, 136.4, 137.2, 140.2, 143.1 (CH=N), 154.7, 157.0. Anal. Calced for C23H20FN3O2S: C, 65.54; H, 4.78; N, 9.97. Found: C, 65.6; H, 4.6; N, 9.94.

5-Methyl-2-(4-(methylsulfonyl)phenyl)-3-((2-(p-tolyl)hydrazono)methyl)-1H-indole (7 g)

Brown solid; Yield 84%; mp 166-168 ℃; IR (KBr, cm−1) 3214–3306 (indole NH, hydrazone NH), 3023 (CH aromatic), 2926–28,658 (CH aliphatic), 1598 (C=N), 1302, 1149 (SO2); 1H NMR (DMSO-d6) δ (ppm): 2.32 (s, 3H, CH3), 2.48 (s, 3H, CH3), 3.25 (s, 3H, SO2CH3), 6.95–7.07 (m, 3H, indole H-6, phenyl hydrazone H-3, H-5), 7.39 (d, 1H, J = 8.4 Hz, indole H-7), 7.62 (s, 2H, NH2, D2O exchangeable), 7.80 (d, 2H, J = 8.4 Hz, phenyl hydrazone H-2, H-6), 7.92 (d, 2H, J = 8.4 Hz, phenyl H-2, H-6), 8.10 (d, 2H, J = 8.4 Hz, phenyl H-3, H-5), 8.2 (s, 1H, CH), 8.25 (s, 1H, indole H-4), 9.91 (s, 1H, hydrazone NH, D2O exchangeable), 11.71 (s, 1H, indole NH, D2O exchangeable); 13C NMR (DMSO-d6) δ (ppm): 20.5 (CH3), 22.1 (CH3), 44.0 (SO2CH3), 111.0, 111.9, 120.5, 122.5, 125.6, 126.1, 126.8, 127.2, 127.8, 128.1, 129.6, 130.0, 135.2, 136.1, 137.7, 140.7, 144.1 (CH=N). Anal. Calced for C24H23N3O2S: C, 69.04; H, 5.55; N, 10.06. Found: C, 68.82; H, 5.68; N, 10.32.

5-Fluoro-2-(4-(methylsulfonyl)phenyl)-3-((2-(4-(methylsulfonyl)phenyl) hydraz-ono)methyl)-1H-indole (7h)

Bale yellow solid; Yield 92%; mp 187–188 ℃; IR (KBr, cm−1) 3265–3337 (indole NH, hydrazone NH),3025 (CH aromatic), 2925–2854 (CH aliphatic), 1593 (C=N), 1321, 1140 (SO2); 1H NMR (DMSO-d6) δ (ppm): 3.12 (s, 3H, SO2CH3), 3.34 (s, 3H, SO2CH3), 7.15–7.20 (m, 3H, phenyl hydrazone H-3, H-5, indole H-6), 7.51 (s, 1H, indole H-4), 7.77 (d, 2H, J = 8 Hz, phenyl hydrazone H-2, H-6), 7.95 (d, 2H, J = 8 Hz, phenyl H-2, H-6), 8.04 (d, 1H, J = 8 Hz, indole H-7), 8.14 (d, 2H, J = 8 Hz, phenyl H-3, H-5), 8.34 (s, 1H, CH), 10.73 (s, 1H, hydrazone NH, D2O exchangeable), 12.11 (s, 1H, indole NH, D2O exchangeable); 13C NMR (DMSO-d6) δ (ppm): 44.0 (SO2CH3), 44.8 (SO2CH3), 107.0, 111.3, 112.1, 113.4, 125.9, 127.9, 129.0, 129.5, 130.2, 134.0, 136.5, 137.4, 139.4, 140.9, 149.7 (CH=N), 157.2, 159.5. Anal. Calced for C23H20FN3O4S2: C, 56.89; H, 4.15; N, 8.65. Found: C, 57.17; H, 4.23; N, 8.58.

4-(2-((5-Fluoro-2-(4-(methylsulfonyl)phenyl)-1H-indol-3yl)methylene)hydrazinyl) benzene sulfonamide (7i)

Yellow solid; Yield 82%; mp 212–214 ℃; IR (KBr, cm−1) 3260–3315 (NH2, indole NH, hydrazone NH), 3026 (CH aromatic), 2927 (CH aliphatic), 1594 (C=N), 1295, 1140 (SO2); 1H NMR (DMSO-d6) δ (ppm): 3.24 (s, 3H, SO2CH3), 7.14 (d, 2H, J = 8 Hz, phenyl hydrazone H-3, H-5), 7.51 (s, 1H, indole H-4), 7.67 (d, 1H, J = 8 Hz, indole H-6), 7.76 (d, 2H, J = 8 Hz, phenyl hydrazone H-2, H-6), 7.91 (s, 2H, NH2, D2O exchangeable), 7.95 (d, 2H, J = 8 Hz, phenyl H-2, H-6), 8.03 (d, 1H, J = 8 Hz, indole H-7), 8.13 (d, 2H, J = 8 Hz, phenyl H-3, H-5), 8.34 (s, 1H, CH), 10.62 (s, 1H, hydrazone NH, D2O exchangeable), 11.99 (s, 1H, indole NH, D2O exchangeable); 13C NMR (DMSO-d6) δ (ppm): 44.0 (SO2CH3), 107.0, 110.6, 112.4, 113.5, 125.9, 127.5, 129.0, 129.2, 130.2, 134.0, 135.5, 136.4, 139.4, 140.8, 141.0, 149.7 (CH=N), 157.2. Anal. Calced for C22H19FN4O4S2: C, 54.31; H, 3.94; N, 11.52. Found: C, 54.67; H, 3.82; N, 11.73.

5-Fluoro-3-((2-(4-fluorophenyl)hydrazono)methyl)-2-(4-(methylsulfonyl)phenyl)-1H-indole (7j)

Yellow solid; Yield 82%; mp 200–202 ℃; IR (KBr, cm−1) 3217–3250 (indole NH, hydrazone NH), 3065 (CH aromatic), 2928–2863 (CH aliphatic), 1597 (C=N), 1302, 1145 (SO2); 1H NMR (DMSO-d6) δ (ppm): 3.33 (s, 3H, SO2CH3), 7.01 (d, 2H, J = 8 Hz, phenyl hydrazone H-3, H-5), 7.09–7.17 (m, 3H, phenylhydrazone H-2, H-6, indole H-6), 7.5 (s, 1H, indole H-4), 7.94 (d, 2H, J = 8 Hz, phenyl H-2, H-6), 8.03 (d, 1H, J = 8 Hz, indole H-7), 8.12 (d, 2H, J = 8 Hz, phenyl H-3, H-5), 8.25 (s, 1H, CH), 10.09 (s, 1H, hydrazone NH, D2O exchangeable), 11.99 (s, 1H, indole NH, D2O exchangeable); 13C NMR (DMSO-d6) δ (ppm): 44.0 (SO2CH3), 107.3, 111.1, 112.0, 112.7, 113.0, 116.3, 125.9, 127.9, 130.1, 134.0, 136.7, 137.9, 140.6, 142.9 (CH=N), 154.7, 157.0, 159.3. Anal. Calced for C22H17F2N3O2S: C, 62.11; H, 4.03; N, 9.88. Found: C, 62.32; H, 4.11; N, 10.16.

5-Fluoro-2-(4-(methylsulfonyl)phenyl)-3-((2-(p-tolyl)hydrazono)methyl)-1H-indole (7k)

Brown solid; Yield 75%; mp 151–153 ℃; IR (KBr, cm−1) 3220–3270 (indole NH, hydrazone NH),3034 (CH aromatic), 2927, 2860 (CH aliphatic), 1597 (C=N), 1303, 1146 (SO2); 1H NMR (DMSO-d6) δ (ppm): 2.23 (s, 3H, CH3), 3.33 (s, 3H, SO2CH3), 6.94 (d, 2H, J = 12 Hz, phenyl hydrazone H-3, H-5), 7.07 (d, 2H, J = 12 Hz, phenyl hydrazone H-2, H-6),7.15 (d,1H, J = 8 Hz, indole H-6), 7.48 (s, 1H, indole H-4), 7.94 (d, 2H, J = 8 Hz, phenyl H-2, H-6), 8.05 (d, 1H, J = 12 Hz, indole H-7), 8.12 (d, 2H, J = 8 Hz, phenyl H-3, H-5), 8.24 (s, 1H, CH), 10.01 (s, 1H, hydrazone NH, D2O exchangable), 11.96 (s, 1H, indole NH, D2O exchangable; 13C NMR (DMSO-d6) δ (ppm): 20.7 (CH3), 43.9 (SO2CH3), 105.3, 111.4, 112.2, 113.3, 125.9, 126.9, 127.3, 128.2, 129.9, 134.0, 134.8, 137.7, 137.9, 140.5, 144.0 (CH = N), 157.0, 159.3. Anal. Calced for C23H20FN3O2S: C, 65.54; H, 4.78; N, 9.97 Found: C, 65.70; H, 5.03; N, 10.14.

General procedure for synthesis of 2-(5-substituted-2-(4-(methylsulfonyl)phenyl)-1H-indol-3-yl)-6-chloro-1H-benzo[d]imidazole 8a-c

A mixture of 4-chloro phenylene diamine (0.142 g, 1 mmol), sodium metabisulfite (0.19 g, 1 mmol) and respective indole-3-carbaldehyde derivative (6a–c) (1 mmol) in DMF was heated under reflux for 6 h. After cooling, the reaction mixture was poured into ice cold water and the separated solid was filtered, dried and recrystallized from ethanol (yield: 60–70%).

5-Chloro-2-(2-(4-(methylsulfonyl)phenyl)-1H-indol-3-yl)-1H-benzo[d]imidazole (8a)

Yellow solid; Yield 60%; mp 210–212 ℃; IR (KBr, cm−1) 3285–3382 (indole NH, benzimidazole NH), 3065–3021 (CH aromatic), 2926–2853 (CH aliphatic), 1660 (benzimidazole C=N), 1301, 1149 (SO2); 1H NMR (DMSO-d6) δ (ppm): 3.27 (s, 3H, SO2CH3), 7.19–7.22 (m, 2H, indole H-5, benzimidazole H-6), 7.3 (t, 1H, J = 7.4 Hz, indole H-6), 7.47 (s, 1H, benzimidazole H-4), 7.55 (d, 1H, J = 8 Hz, benzimidazole H-7), 7.69 (s, 1H, indole H-7), 7.89–7.92 (m, 3H, phenyl H-2, H-6, indole H-4), 7.99 (d, 2H, J = 8.4 Hz, phenyl H-3, H-5), 12.18 (s, 1H, indole NH, D2O exchangeable), 12.45 (s, 1H, benzimidazole NH, D2O exchangeable); 13C NMR (DMSO-d6) δ (ppm): 43.8 (SO2CH3), 105.1, 112.4, 116.4, 116.8, 117.5, 120.7, 121.2, 122.5, 123.8, 127.7, 128.0, 129.5, 131.5, 135.3, 136.2, 136.8, 136.9, 140.5, 145.8. Anal. Calced for C22H16ClN3O2S: C, 62.63; H, 3.82; N, 9.96. Found: C, 62.89; H, 3.68; N, 10.24.

5-Chloro-2-(5-fluoro-2-(4-(methylsulfonyl)phenyl)-1H-indol-3-yl)-1H-benzo[d] imidazole (8b)

Pale yellow; Yield 67%; mp 202–204 ℃; IR (KBr, cm−1) 3348–3360 (indole NH, benzimidazole NH), 3008–3063 (CH aromatic), 2854–2928 (CH aliphatic), 1659 (benzimidazole C=N), 1300, 1148 (SO2); 1H NMR (DMSO-d6) δ (ppm): 3.29 (s, 3H, SO2CH3), 7.13–7.22 (m, 2H, indole H-6, benzimidazole H-6), 7.46 (d, 1H, J = 8 Hz, benzimidazole H-7), 7.55 (s, 1H, indole H-4), 7.66–7.72 (m, 2H, benzimidazole H-4, indole H-7), 7.91 (d, 2H, J = 8 Hz, phenyl H-2, H-6), 8.02 (d, 2H, J = 8 Hz, phenyl H-3, H-5), 12.25 (s, 1H, indole NH, D2O exchangeable), 12.37 (s, 1H, benzimidazole NH, D2O exchangeable); 13C NMR (DMSO-d6) δ (ppm): 43.9 (SO2CH3), 105.4, 106.3, 112.1, 113.6, 117.3, 118.3, 122.0, 123.8, 125.2, 127.7, 129.7, 133.5, 136.6, 138.1, 140.4, 140.9, 141.9, 146.3, 149.0. Anal. Calced for C22H15ClFN3O2S: C, 60.07; H, 3.44; N, 9.55. Found: C, 60.31; H, 3.20; N, 9.79.

5-Chloro-2-(5-methyl-2-(4-(methylsulfonyl)phenyl)-1H-indol-3-yl)-1H-benzo[d]imidazole (8c)

Yellow solid; Yield 70%; mp 217–219 ℃; IR (KBr, cm−1) 3272–3322 (indole NH, benzimidazole NH), 3192, 3072 (CH aromatic), 2927, 2857 (CH aliphatic), 1620 (benzimidazole C=N), 1301, 1149 (SO2); 1H NMR (DMSO-d6) δ (ppm): 2.43 (s, 3H, CH3),3.27 (s, 3H, SO2CH3), 7.12 (d, 1H, J = 8.4 Hz, indole H-6), 7.2 (d, 1H, J = 8.4 Hz, benzimidazole H-6), 7.43–7.47 (m, 2H, indole H-7, benzimidazole H-7), 7.68–7.71 (m, 2H, indole H-4, benzimidazole H-4), 7.88 (d, 2H, J = 8.4 Hz, phenyl H-2, H-6), 7.98 (d, 2H, J = 8.4 Hz, phenyl H-3, H-5), 12.04 (s, 1H, indole NH, D2O exchangeable), 12.45 (s, 1H, benzimidazole NH, D2O exchangeable); 13C NMR (DMSO-d6) δ (ppm): 21.7 (CH3), 43.8 (SO2CH3), 104.7, 112.1, 113.2, 118.4, 118.6, 120.1, 122.7, 125.5, 126.2, 127.6, 128.3, 129.4, 130.0, 134.3, 135.2, 136.1, 137.0, 140.4, 145.7. Anal. Calced for C23H18ClN3O2S: C, 63.37; H, 4.16; N, 9.64. Found: C, 63.24; H, 4.25; N, 9.88.

General procedure for synthesis of 5-un/substituted-2-(4-(methylsulfonyl)phenyl)-1H-indole-3-carbaldehyde oxime 9a–c

A mixture of an ethanolic solution of respective indole-3-carbaldehyde derivative (6a–c) (1 mmol) and hydroxylamine HCl (0.08 g, 1 mmol) was heated under reflux for 4–6 h in the presence of a few drops of pyridine. After cooling, the reaction mixture was poured into ice-cold water and the separated solid was filtered, dried and recrystallized from ethanol (yield: 55–70%).

2-(4-(Methylsulfonyl)phenyl)-1H-indole-3-carbaldehyde oxime (9a)

Yellow solid; Yield 62%; mp 199–201 ℃; IR (KBr, cm−1) 3282–3385 (indole NH, OH), 3010–3028 (CH aromatic), 2928–2951 (CH aliphatic), 1596 (C=N), 1302, 1146 (SO2); 1H NMR (DMSO-d6) δ (ppm): 3.31 (s, 3H, SO2CH3), 7.16–7.26 (m, 2H, indole H-5, H-6), 7.48 (d, 1H, J = 8 Hz, indole H-7), 7.89 (d, 2H, J = 8 Hz, phenyl H-2, H-6), 8.10–8.12 (m, 3H, phenyl H-3, H-5, indole H-4), 8.32 (s, 1H, CH), 10.89 (s, 1H, OH, D2O exchangeable), 11.96 (s, 1H, indole NH, D2O exchangeable); 13C NMR (DMSO-d6) δ (ppm): 44.2 (SO2CH3), 106.4, 112.7, 122.4, 125.7, 126.2, 127.9, 129.0, 129.9, 135.6, 136.7, 137.7, 140.7, 143.3 (CH=N). Anal. Calced for C16H14N2O3S: C, 61.13; H, 4.49; N, 8.91. Found: C, 61.48; H, 4.61; N, 8.62.

5-Fluoro-2-(4-(methylsulfonyl)phenyl)-1H-indole-3-carbaldehyde oxime (9b)

Yellow solid; Yield 55%; mp 226–228 ℃; IR (KBr, cm−1) 3366–3463 (indole NH, OH), 3013–3029 (CH aromatic), 2918–2997 (CH aliphatic), 1598 (C=N), 1298, 1143 (SO2); 1H NMR (DMSO-d6) δ (ppm): 3.3 (s, 3H, SO2CH3), 7.12 (d, 1H, J = 8 Hz, indole H-6), 7.48 (s, 1H, indole H-4), 7.8 (d, 1H, J = 8 Hz, indole H-7), 7.89 (d, 2H, J = 8 Hz, phenyl H-2, H-6), 8.11 (d, 2H, J = 8 Hz, phenyl H-3, H-5), 8.31 (s, 1H, CH), 10.89 (s, 1H, OH, D2O exchangeable), 12.04 (s, 1H, indole NH, D2O exchangeable); 13C NMR (DMSO-d6) δ (ppm): 43.9 (SO2CH3), 107.2, 112.2, 113.3, 126.2, 128.0, 129.5, 133.8, 136.3, 139.3, 140.5, 144.0 (CH=N), 157.1, 159.4. Anal. Calced for C16H13FN2O3S: C, 57.82; H, 3.94; N, 8.43. Found: C, 57.58; H, 4.06; N, 8.75.

5-Methyl-2-(4-(methylsulfonyl)phenyl)-1H-indole-3-carbaldehyde oxime (9c)

Yellow solid; Yield 70%; mp 212–214 ℃  ℃; IR (KBr, cm−1) 3362 (indole NH, OH), 3025–3060 (CH aromatic), 2857–2928 (CH aliphatic), 1597 (C=N), 1300, 1145 (SO2); 1H NMR (DMSO-d6) δ (ppm): 2.42 (s, 3H, CH3), 3.29 (s, 3H, SO2CH3), 7.09 (d, 1H, J = 8 Hz, indole H-7), 7.36 (d, 1H, J = 8 Hz, indole H-6), 7.86 (d, 2H, J = 8 Hz, phenyl H-2, H-6),7.94 (s, 1H, indole H-4), 8.09 (d, 2H, J = 8 Hz, phenyl H-3, H-5), 8.31 (s, 1H, CH), 10.8 (s, 1H, OH, D2O exchangeable), 11.79 (s, 1H, indole NH, D2O exchangeable); 13C NMR (DMSO-d6) δ (ppm): 21.7 (CH3), 44.0 (SO2CH3), 107.4, 111.8, 122.2, 125.4, 126.2, 127.7, 129.0, 129.9, 135.5, 136.7, 137.7, 140.5, 144.3 (CH=N). Anal. Calced for C17H16N2O3S: C, 62.18; H, 4.91; N, 8.53. Found: C, 62.42; H, 4.83; N, 8.79.

Biological evaluation

Antimicrobial and antifungal activities

The antimicrobial and antifungal screening was performed according to CO-ADD (The Community for Antimicrobial Drug Discovery) procedures [27].

COX-1/COX-2 inhibition colorimetric assay

Measurement of the ability of the synthesized compounds to inhibit COX isozymes by using colorimetric COX (ovine) inhibitor screening assay kit (Kit catalog number 760111, Cayman Chemical, Ann Arbor, MI, USA) following the manufacturer’s instructions and as mentioned before [28].

Carrageenan-induced rat edema assay

Pretreatment of rats with compounds 7a–k, 8a–c, and 9a–c before injection with carrageenan in rat paw which induces inflammation and then the percentage of paw edema reduction was measured after certain hours according to previously reported procedures [29].

In vitro nitric oxide release assay

Different solutions of the tested compounds 9a–c in DMF were diluted using phosphate buffer (pH 7.4) till a final concentration of 100 µM (test solutions). To 100 µl of different test solutions, 100 µl of N-acetyl cysteine solution was added and the obtained solution was kept in an incubator at 37 °C (treated solutions). The solutions were treated similarly as for a nitrite standard solution with Griess reagent components, 100 µl of sulphanilamide solution was added to each tube of the treated solution, the mixture was left at 25 °C for 5–10 min, protected from light. To this mixture 100 µl of the NED solution was added, the mixture was again left for 5–10 min at 25 °C, protected from light.

The absorbance of the formed purple color, if any, was measured within 30 min at λ 546 nm, a blank experiment was performed under the same conditions, the procedure was repeated three times for each tested compound and the average absorbance values were calculated. The corresponding concentration of nitrite was determined by comparison to the nitrite standard calibration curve and the amount of NO released (revealed by the corresponding nitrite concentration) was calculated as a percentage of moles of NO released from 1 mol of the tested compounds.

Molecular modeling and docking

Molecular modeling studies were performed by using Molecular Operating Environment MOE version 2018.0101. Structures of 7b, 7h, and 7i were built in MOE. The X-ray crystal structure of celecoxib bound to the COX-2 (PDB: ID 3LN1) active site was obtained from the protein data bank at research collaboration for Structural Bioinformatics (RSCB) protein database [PDB].

Preparation of the enzyme for docking by removing the Co-crystallized ligand and water molecules then the enzyme was 3D protonated, in which hydrogen atoms were added to their standard geometry. The conformers generated were docked into the COX-2 receptor with MOE-dock using the triangle matcher placement method and the GBVI/WSA dG scoring function.

A molecular mechanics force field refinement was carried out on the top 30 poses generated. Celecoxib was redocked into the active site of 3LN1 to validate the docking protocol. Amino acid interactions and the hydrogen bond lengths were summarized in (Table 6).

Availability of data and materials

The data sets and samples of the compounds used during the current study are available from the corresponding author on reasonable request.

Abbreviations

A. baumannii :

Acinetobacter baumannii

C. albicans :

Candida albicans

C. neoformans :

Cryptococcus neoformans var. grubii

E. coli :

Escherichia coli

GI50 :

Growth Inhibition of 50%

K. pneumonia :

Klebsilla pneumonia

MIC:

Minimum Inhibitory Concentration

MOE:

Molecular Operating Environment software

MRSA :

Methicillin-resistant Staphylococcus aureus

P. aeruginosa :

Pseudomonas aeruginosa

SI:

Selectivity index
